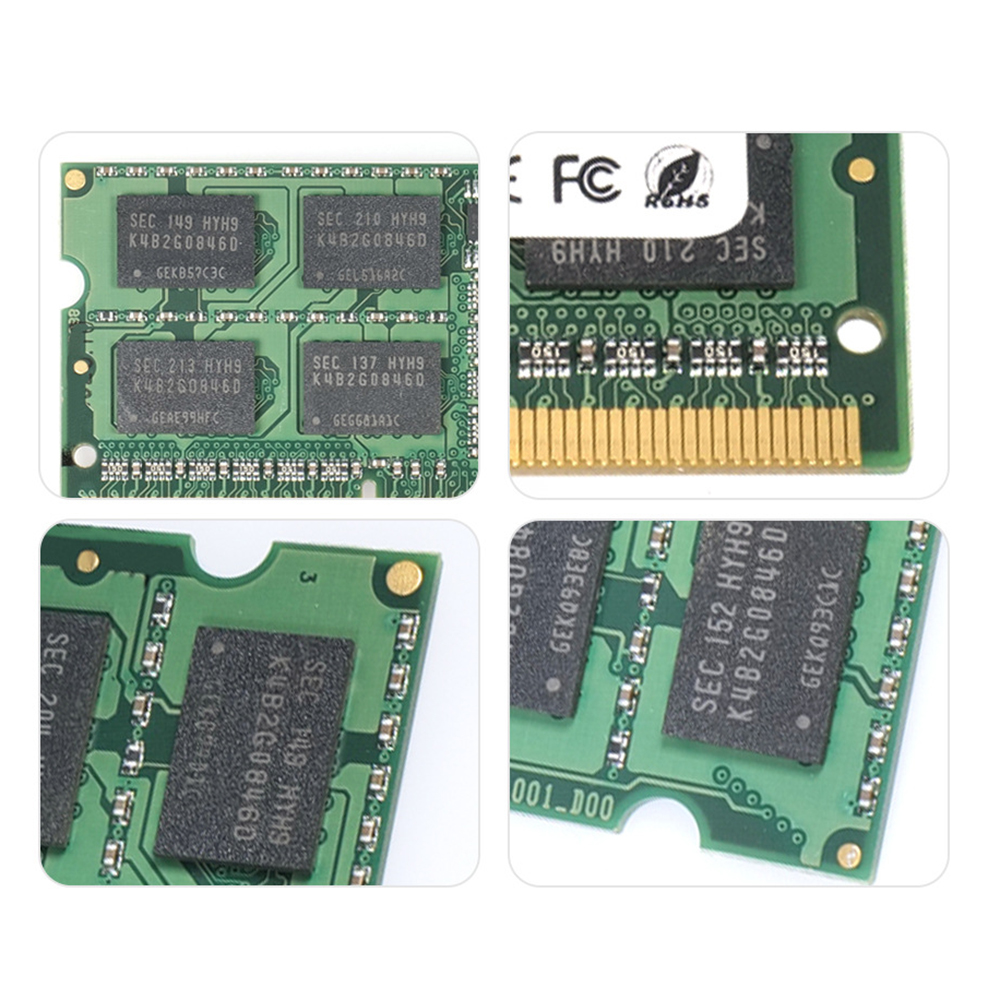

DDR3 SODIMM
Capacity: 4GB / 8GB/16GB
Frequency: 1600
JEDEC specification voltage: 1.5V /1.35V
Number of chips: 8 or16
Operating temperature: standard 0℃ - 85℃, wide temperature -25℃ - 95℃, industrial grade -40℃ - 95℃
Gold finger thickness: 30U
Application: Network/Industrial/Embedded
Frequency: 1600
JEDEC specification voltage: 1.5V /1.35V
Number of chips: 8 or16
Operating temperature: standard 0℃ - 85℃, wide temperature -25℃ - 95℃, industrial grade -40℃ - 95℃
Gold finger thickness: 30U
Application: Network/Industrial/Embedded
Introduction
SODIMM (Small Outline DIMM) is a JEDEC compliant module designed to fit into space-constrained systems such as notebook computers, small industrial computers and embedded systems. Manufactured with the highest quality original memory chips, strictly tested for quality assurance and verification of compatibility, the core's SODIMM is a high-performance memory with stability and compatibility.
- Package: 204-pin Small Outline Dual Inline Memory Module (SO-DIMM)
- PCB: 30.0mm high, 0.6mm pitch (pin), lead-free (RoHS compliant)
- Power: VDD= 1.35V ( 0.1V ~ -0.067V) / 1.5V (± 0.075V)
- 8 internal banks work together (component)
- Supports automatic precharge option for each burst access
- Support auto refresh/self refresh
